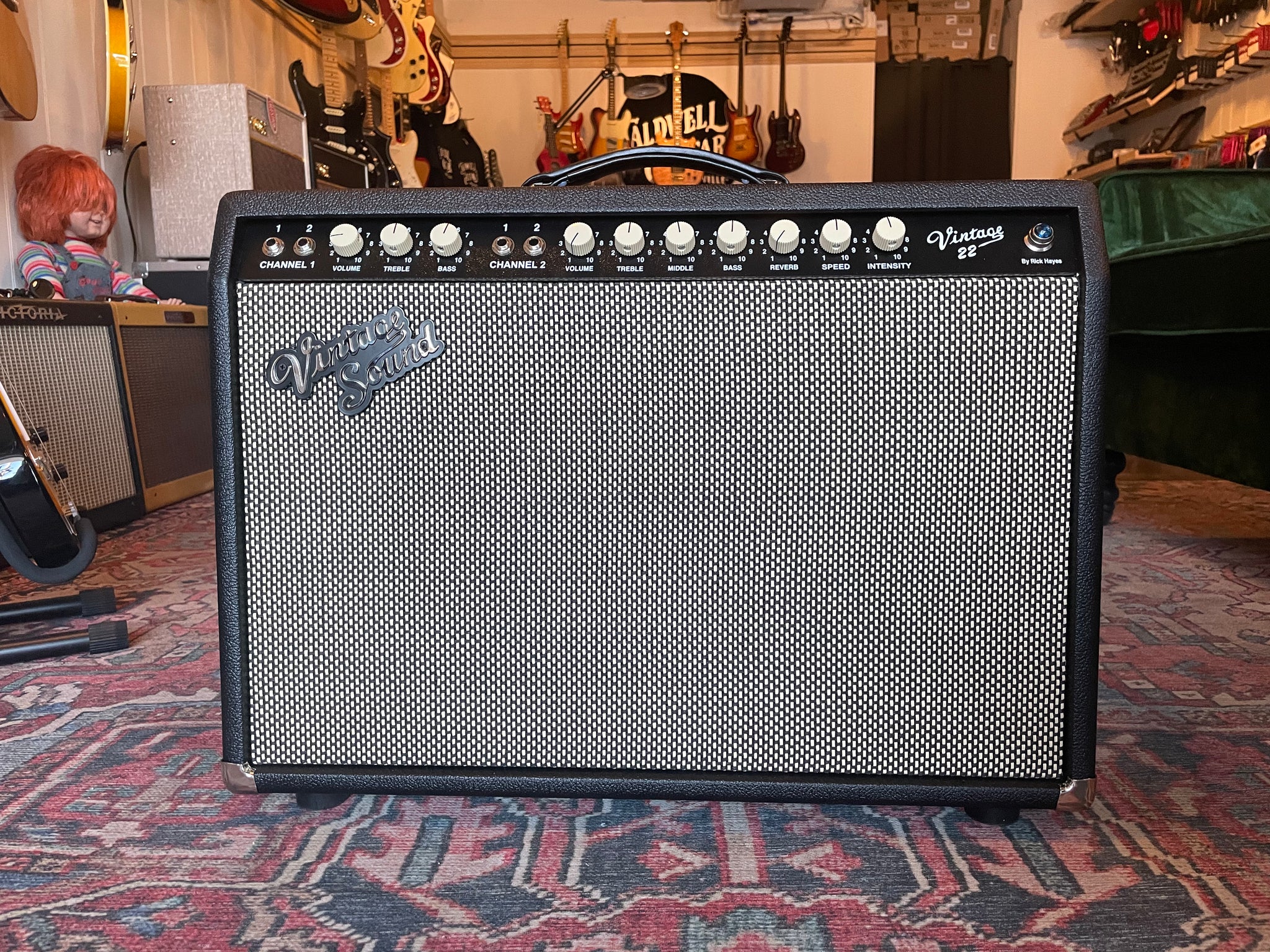

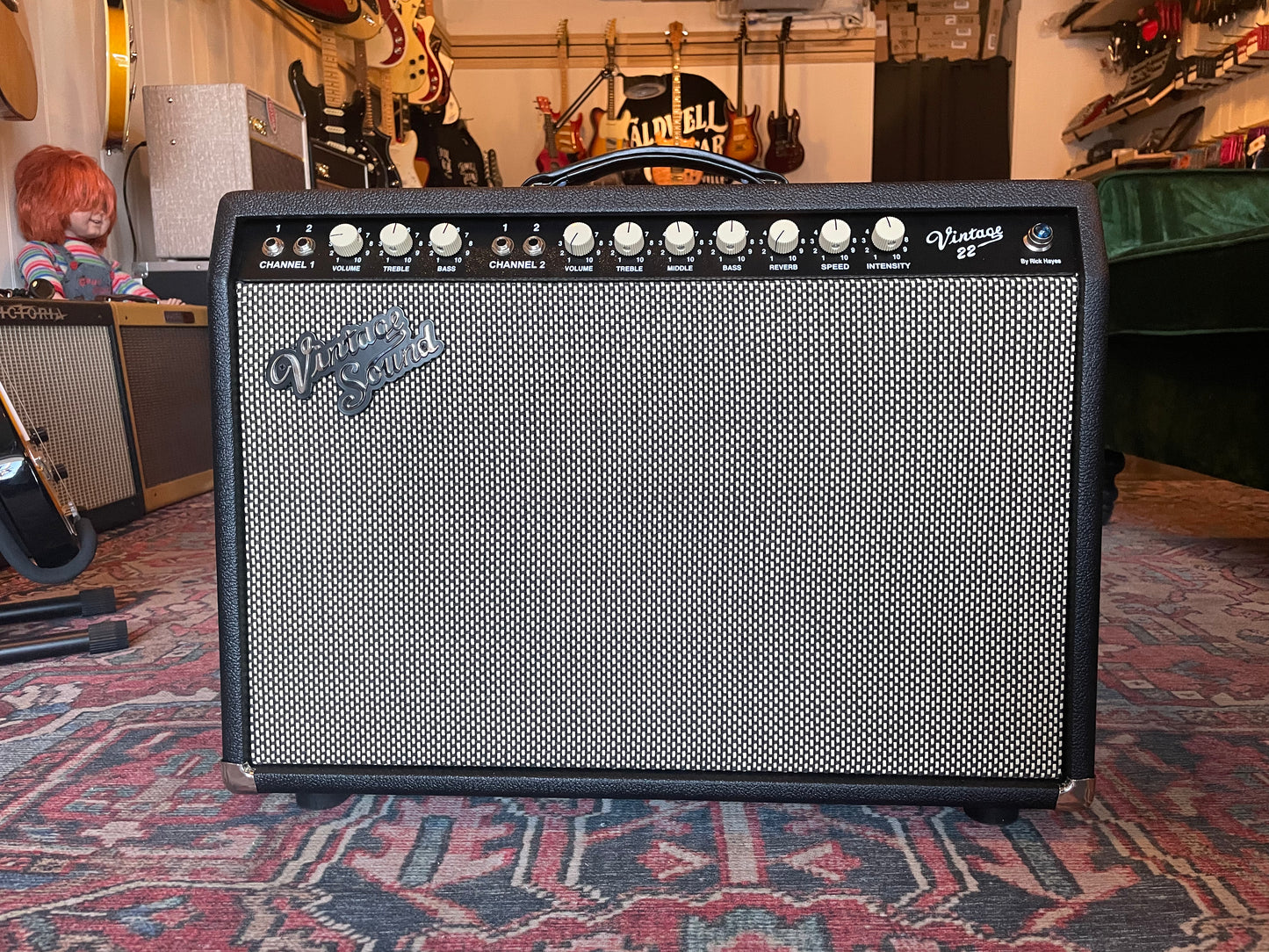

Vintage Sound Vintage 22

A note from Vintage Sound:

Vintage Sound Amps pays tribute to the classic amps of the 50’s and 60’s. Our philosophy in amp building is very simple. With our designs, we did not set out to build a clone. We only took the most sought after features and tone from the early classics amps and made modifications unique to Vintage Sound Amps, incorporating requested features by our customers over the years. These design changes make our amps more versatile and up to date while retaining that sought after Vintage Tone.

All Vintage Sound Amps are point-to-point hand-wired. Our cabinets are custom built for us and are built with high quality pine. We use top quality filter caps and electrolytics, carbon comp resistors, high quality tone caps, solid core pushback wire, and custom hand wound transformers Made in the USA. Amplifiers come with your choice of Warehouse (WGS) or Weber speakers–all Made In USA. We use top quality tubes by Tube Amp Doctor (TAD), (Other High Quality tubes may be substituted, either Mullard or Tung-Sol). All amps come with a five-year limited warranty to the original owner and include a signed and dated tube chart on the inside of the cabinet.

MSRP* : $2,095.00

Model:  Vintage 22
Amplifier Type: Tube

Specifications:
Circuitry: Black Face AB763
Power Handling: 22 Watts into 8 Ohms
Inputs: 2 channels; 4 Inputs (2 per channel)

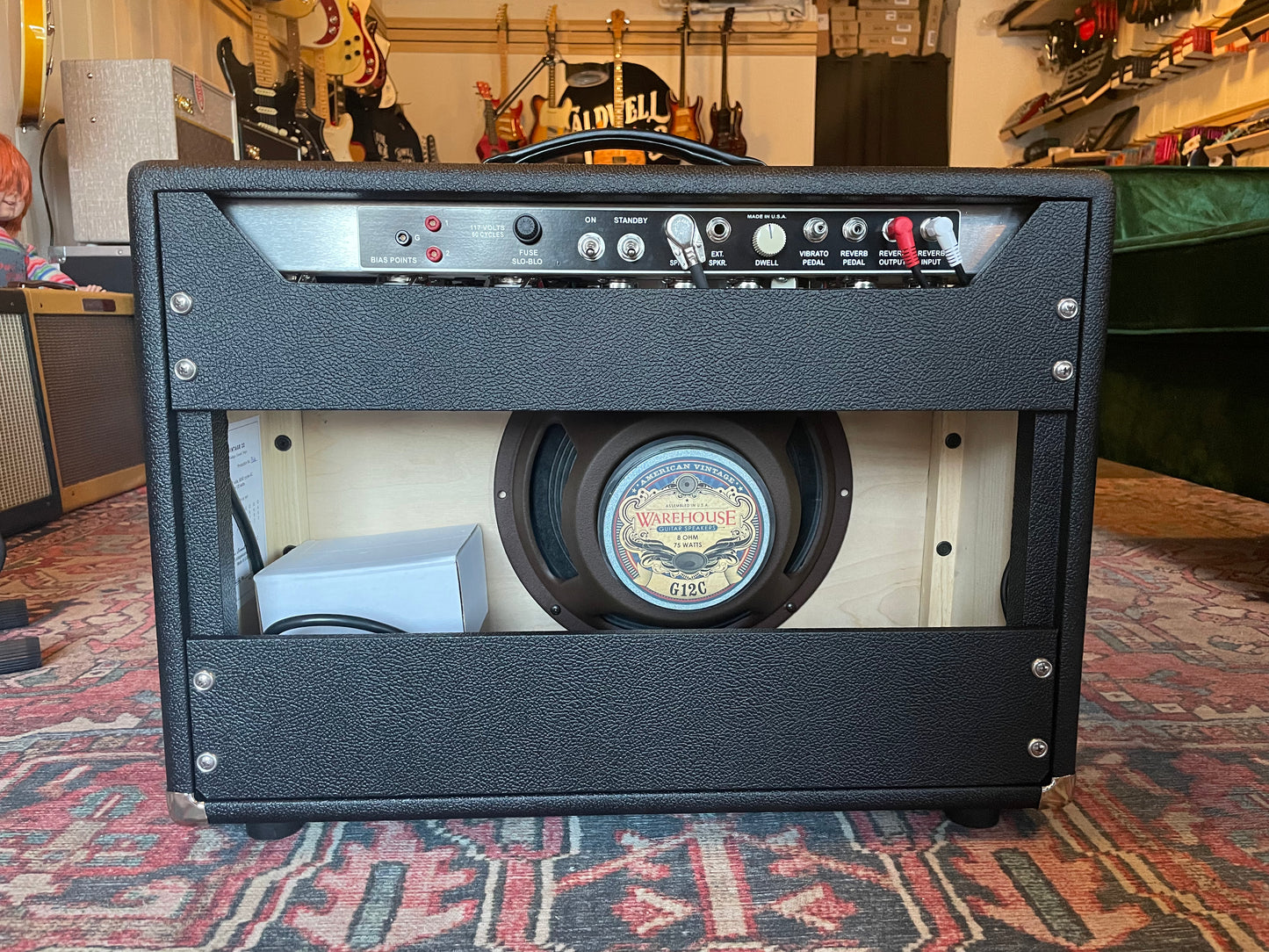

Auxiliary Inputs:
Bias Points
RCA Foot switch Jack
Extension Speaker Jack
External Speaker Jack
Controls:
Channel #1 :  Volume, Treble, Bass
Channel #2:   Volume, Treble, Middle, Bass, Reverb, Speed, Intensity

Hardware:
Cabinet Material:   Solid Pine Cabinet w/ Birch Plywood Baffle & upper and lower back panel
Pilot Light Jewel:   Blue (other colors available)
Knobs: Chicken Head or Barrel Head
Handle: Leather Handle

Effects:
Tube Driven Spring Reverb
Tube Vibrato

Speakers:
*WGS G-12c/s
*optional speakers available

Tubes:
Rectifier: 5AR4 Rectifier Tube
Power Tubes:     (2)  6V6 -or- (2) 6L6
Preamp Tubes:  (4)  12AX7, (2) 12AT7

Optional Accessories:
2-Button Foot switch
Custom Padded Cover

Optional Modification(s):
Re-voice Channel 1:
Brown Face/Black Face with added reverb & vibrato
Mild High Gain/Compression with added reverb & vibrato

Dimensions:
Amplifier Depth:     9 ½ “
Amplifier Width:     24 ½”
Amplifier Height:    17 ½ ”
Amplifier Weight:   45 lbs.

Head Dimensions:
Amplifier Depth: 9 1/2″
Amplifier Width: 24 1/2″
Amplifier Height: 9 1/2″
Amplifier Weight: 25 lbs.
